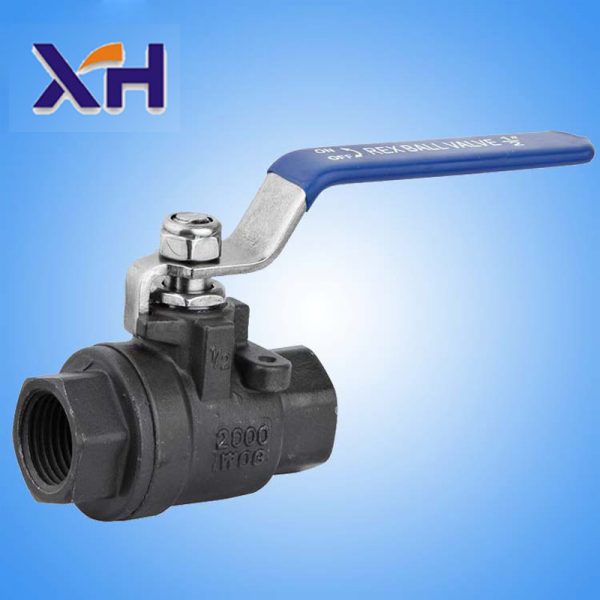

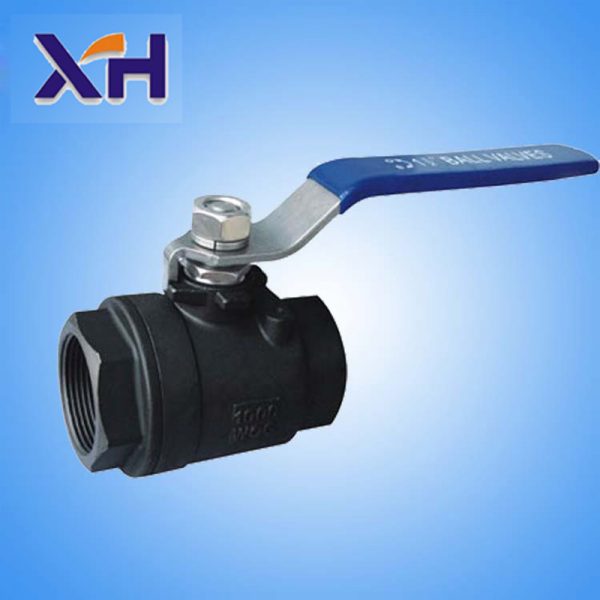

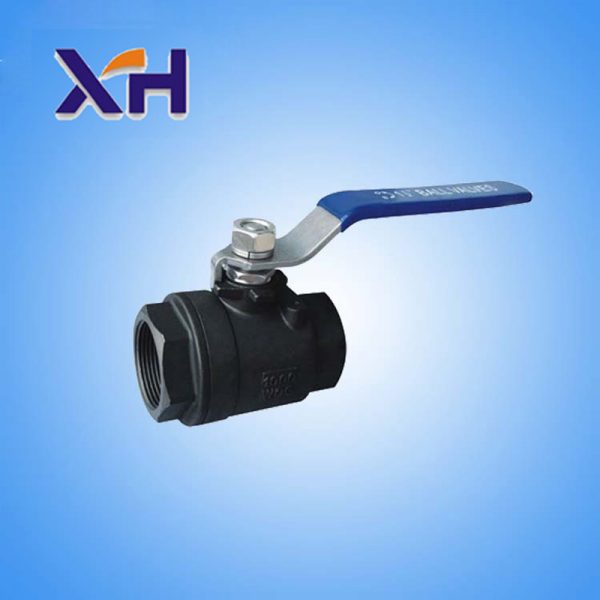

Two carbon steel
- Description
- Reviews (0)
Description
Brand:xinhong
Model:Q11C
Texture of material:Stainless steel
Connection form:Thread
Structural style:VariedVaried
Nominal diameter:DN15-DN100（mm）
Applicable medium:Water vapor, gasoline, air,
Pressure environment:low pressure
Working temperature:Normal atmospheric temperature
Standard:National standard
Flow direction:two-way
Parts and accessories:valve body
| NO. | 零部件名称 Parts name | 材质Material |
| 1 | 阀体 Boby | 304 |
| 2 | 阀体密封垫 Body Gasket | PTEF |
| 3 | 螺帽 Cap | Carbon steel material |
| 4 | 阀座 BALL Seat | PTEF |
| 5 | 球芯 Ball | 304 |
| 6 | 阀杆 Stem | 304 |
| 7 | 阻力垫片 Thrust Washer | PTFE |
| 8 | 阀体填料 Stem Packing | PTFE |
| 9 | 紧固螺帽 Stop Nut | 201 |
| 10 | 弹簧垫片 Spring Washer | 201 |
| 11 | 阀杆螺帽 Stem Nut | 201 |
| 12 | 手柄 Handle | 201 |
| 13 | 手柄套 Handle Cover | Plastic |
